Zeon-10-S 12 Volt
met
9.5 mm x 30.5 mtr Spydura synthetic touw
Zeon-10-S
THERMOMETRIC WINCH
TOP-NOTCH STRUCTURE
TOP-NOTCH OPERATOR FEEDBACK
TOP-NOTCH WINCH
WARN
ZEON-10-S


WARN ZEON-10-S
10,000 lbs. of cutting-edge pulling muscle
Choose your way to conquer the terrain. The ZEON 10-S is tough enough
to tackle anything you will, with a look that is advanced, capable
and strong. Muck-busting sealing keeps out everything but the good
times. Add a hyper-durable cast-aluminum housing, satin-black finish,
and 10,000 lbs. single-line pulling capacity and, well, you’ve got
a workhorse unit you can trust for years to come.
•10,000 lb. (4536 kg) single-line pulling capacity.
•Includes 100′ of 3/8″ WARN Spydura synthetic rope, a
temperature-resistant sleeve on the first layer, a ballistic nylon
sliding sleeve for abrasion resistance, and a polished aluminum
hawse fairlead
•Convertible control pack can be attached to the winch or
remotely mounted, allowing for various winch mounting options and
looks. (Relocation kit required and sold separately*)
•Updated planetary gear train and series-wound motor deliver
fast, quiet, and reliable pulling power.
•Satin-black powder-coated finish with stainless steel fasteners
and clutch lever looks great and inhibits corrosion. Improved winch
sealing to keep the elements out.
•Large diameter winch drum reduces rope wear, is light weight,
and has an integrated rope anchor for easy rope installation.
•Backed by the WARN Limited Lifetime Warranty
*Control Pack Relocation Kit. Required to mount control box remotely
from winch. PN 89970 (Short kit), PN 89960 (Long kit)





Standaard
uitrusting:
In-
en uitlieren
Automatische
rem
Vrijloop
voor snelle afrol
Stevige
afstandbediening met 3.7 mtr. draad
Heavy
Duty brievenbus touwgeleider
Prestaties
en verbruik 12V
Trekkracht
kg (lbs.)
Kabelsnelheid
meter/min
Motor
Amps 12V
Trekkracht
kg per laag
0
10.27
62
1/4536
907 (2000)
4.5
144
2/3740
1814 (4000)
3.4
215
3/3181
2722 (6000)
2.6
380
4/2768
3629 (8000)
2.0
353
5/2150
4536 (10000)
1.5
409
Specificaties:
Trekkracht
(op enkele lijn): 4536 kg (10000 lbs.)
Motor: High
Output Parallel Series Wound, 12V
Afstandsbediening:
Remote, 12′ (3.7m) kabel, S2 elementen, geintegreerd flashlight
Tandwieloverbrenging:
3-Stage Planetary
Overbrenging:
216:1
Vrijloop (freespooling):
Sliding Ring Gear
Automatische
rem Automatic Direct Drive Cone
Staalkabel
Aircraft kwaliteit Wire Rope 9.52 mm dik, 24.38 mtr lang
Afmetingen:
zie onder
Trommel diameter
80.0 mm (3.15″)
Trommmel lengte
229.0 mm (9.0″)
Gewicht 44.0
kg
Smering: Aeroshell
#17

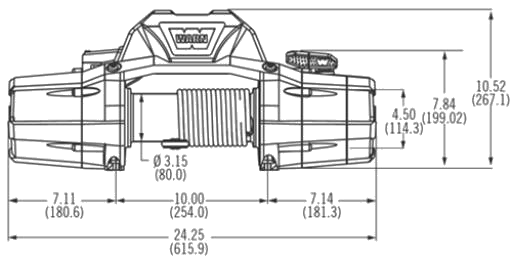

Dimensies
aantal montagegaten:
4
Diameter montagebouten
M10
Gatenpatroon
montagepunten hart op hart 254 mm x 114 mm (10″ x 4.5″)
Lengte x Breedte
x Hoogte 615.9 mm x 181.6 mm x 267.1 mm (24.25″ x 7.15″ x 10.52″)
